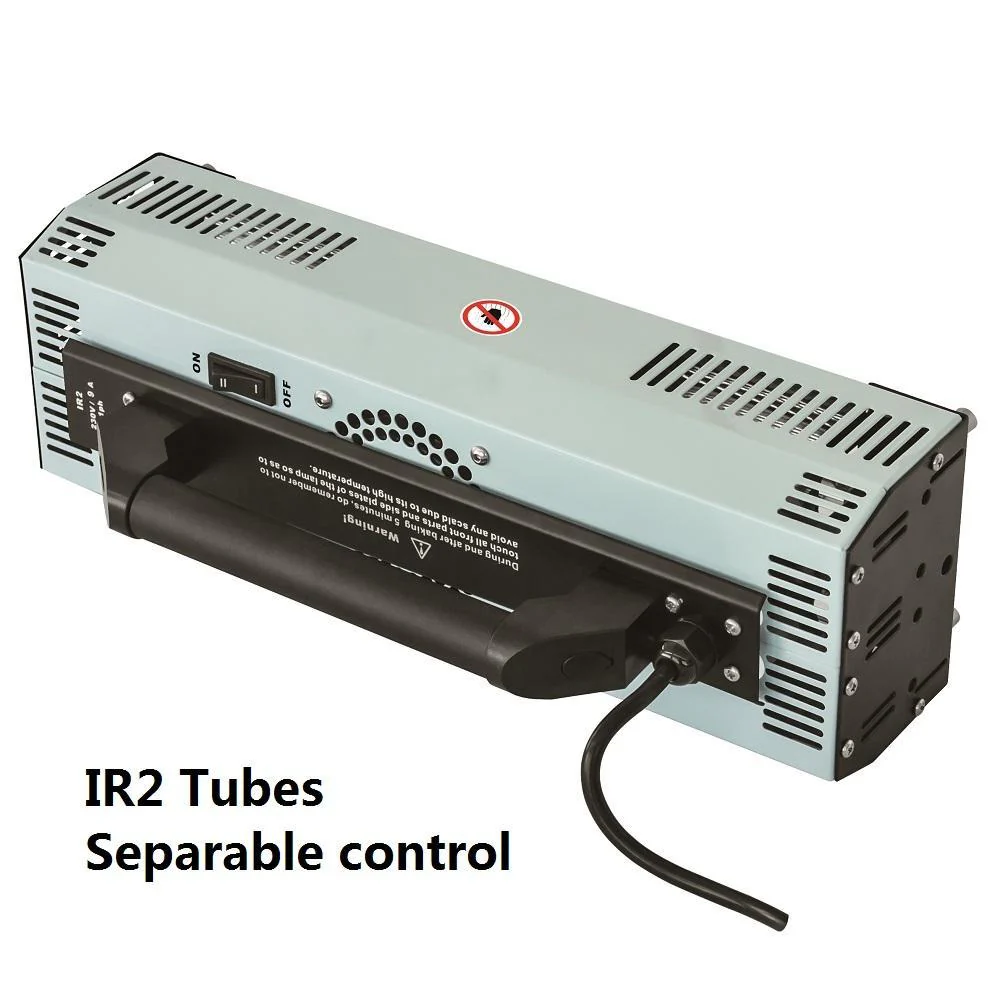

IR2-110V Infrared Paint Curing Lamp

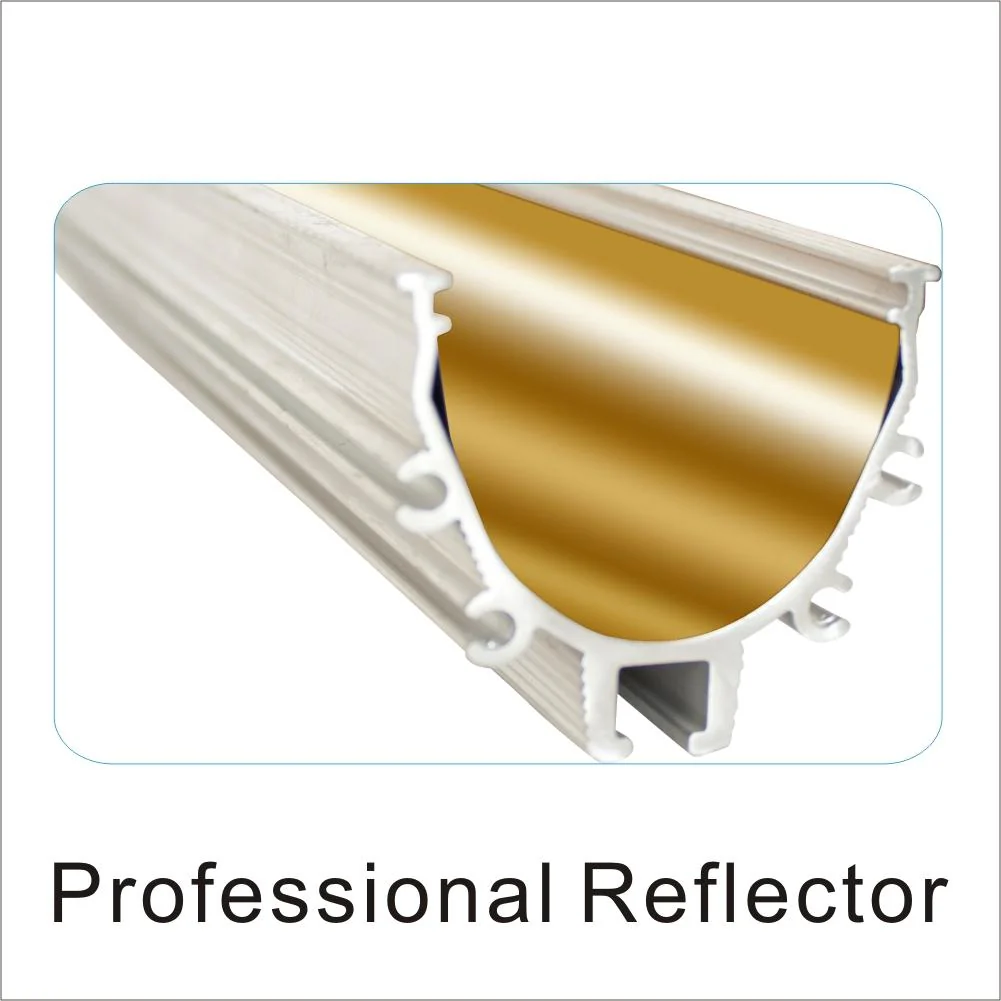

• Solary Electricals IR2 Infrared Paint Curing Lamp has two gold-coated short-wave tubes and gold-coated reflectors with 97% high reflectivity and strong anti-oxidation.
• Short wave infrared emitter modules with high light-emitting efficiency.
• Direct powerful penetration into the inner layer of paint. Completely dry two-pack paints within 15 minutes and polyester putty in 5 minutes.
• Portable design: easy-to-cure edges, small spots, or hard-to-reach areas.

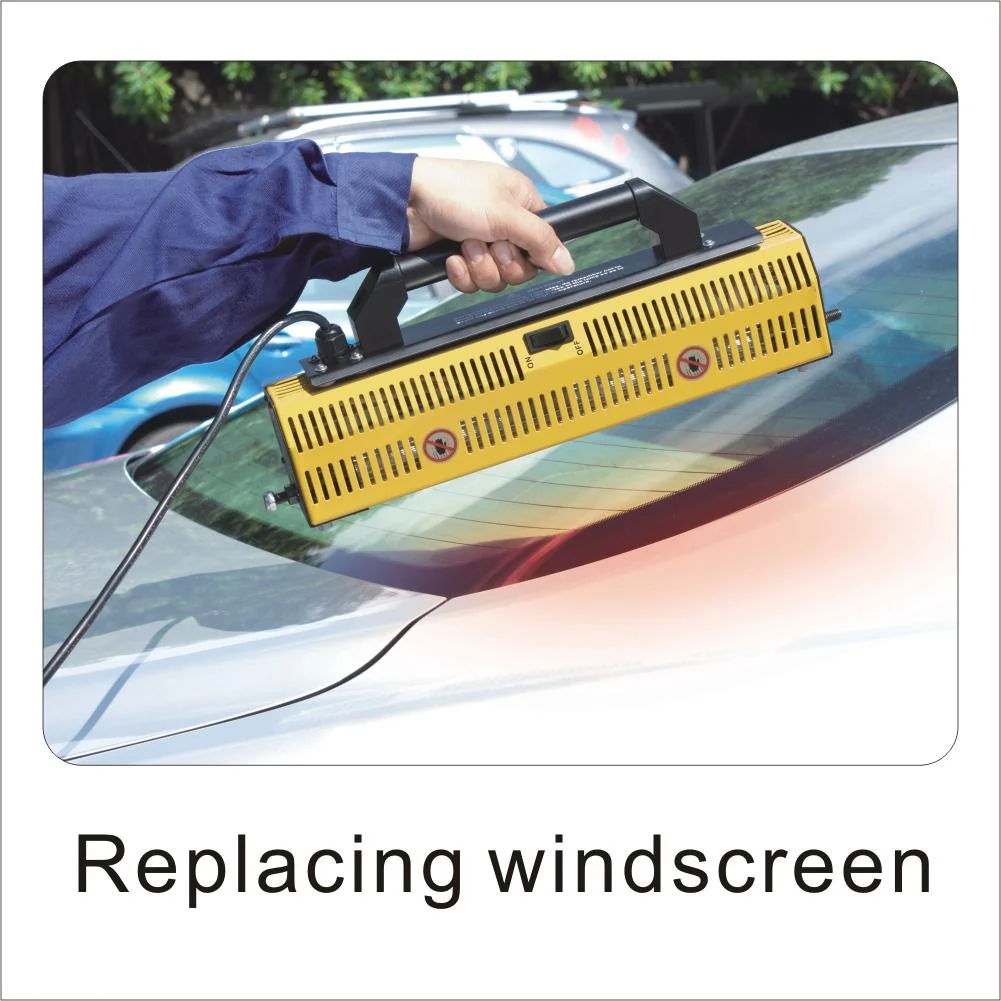

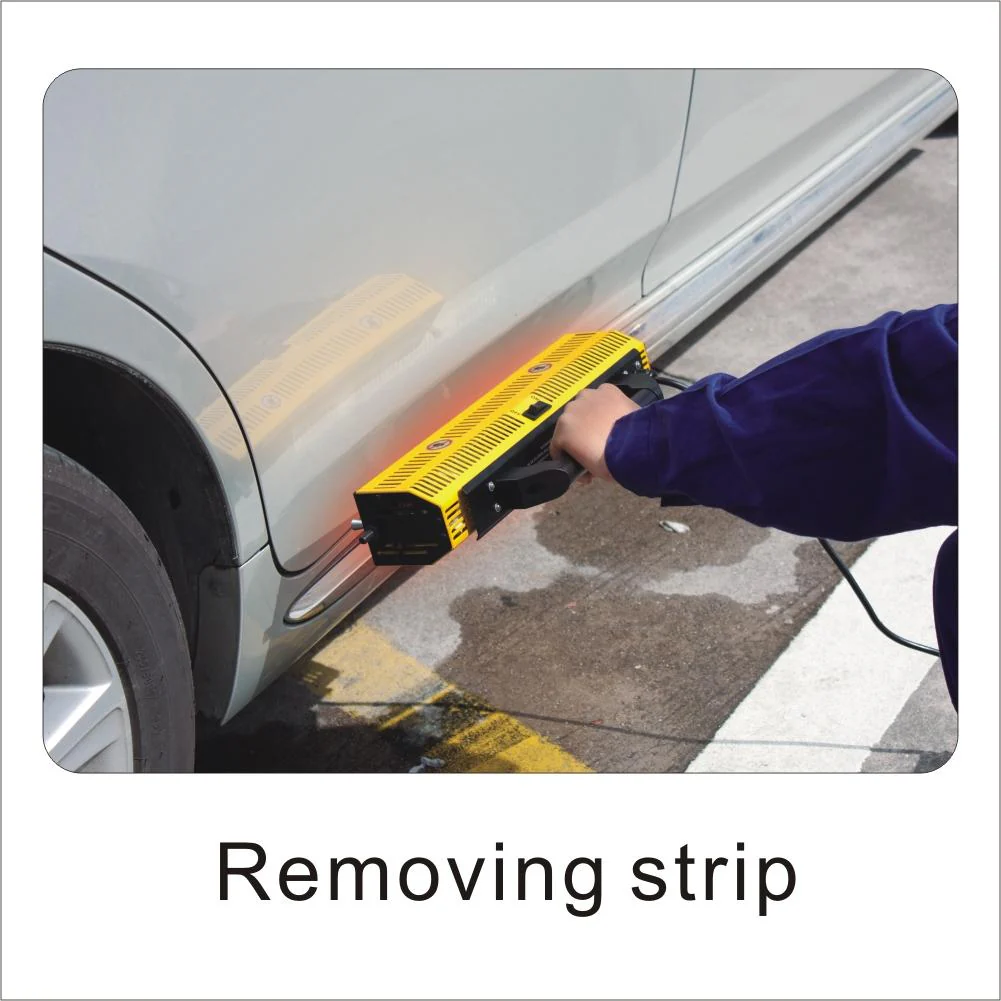

• Applications: Soften trim moldings when replacing windscreens or removing strips, heat aluminum to repair aluminum-body vehicles, heat through film for chrome wrapping on automobiles/cars, dent pulling, or removal.
• Replacement bulb/heater tube can be purchased here: IR Series Replacement Bulb

Short-wave Infrared paint baking Lamps are widely used in local paint drying, furniture drying, advertising industry, car film, car spray booths, etc.

It is an excellent auxiliary tool for sheet metal painting, on-site maintenance, engine drying, etc.

Short-Wave Infrared

Short-wave infrared has a high light yield and a strong penetration capacity. It can penetrate directly into the paint layer to accelerate its molecular chemical reaction so that the water solvent in the coating can quickly volatilize, allowing the coating to cure quickly.

High Heating Efficiency

The paint curing lamp is equipped with a 1600W shortwave infrared lamp tube, which is highly efficient & energy-saving, with higher drying efficiency than traditional heat sources, reducing your working time and improving your work efficiency.

Handheld

The paint lamp is compact and light, designed with a safety handle, avoids injury due to high-temperature contact, and is safer.

Features:

• With a safety pad to prevent high-temperature burns and contact with burns
• Two layers of high-temperature insulation board and ample cooling holes to improve the safety factor
• Long life emitter: life spans up to 6000 hours.

Features:

Application Scenario:

Specification:

Model:	IR2
Input voltage (50/60HZ) :	110V 1ph
Emitter power(W) :	1600
Temperature(℃):	60-70
Net weight (kg) :	2.1

Answered Questions

I need a Replacement bulb. Where can I get one?

Answer

Hello, you can buy the unique lamp matching IR series on this page. If you have other questions, you can click the message tool on the lower right corner to ask us. IR Series Replacement bulb

Can this be effectively used to dry epoxy resins also?

Answer

Of course! This can be used effectively for drying epoxy resins. Our methods/products have been widely used to dry various epoxy resins. It will help you complete your work quickly and efficiently and ensure the quality and durability of the result. If you have any questions or need more information, please get in touch with us; we will be happy to serve you!

Does this get hot enough to cure powder coatings?

Answer

It gets hot enough to cure powder coatings effectively. Our product/method is designed to provide the precise temperature required for curing powder coatings, ensuring a durable and high-quality finish. You can trust it to meet your curing needs reliably.

Will this get up to 400 plus surface temp if insulated around the part with foil?

Answer

Hello, the temperature will gradually rise as the heating time increases. We have yet to test the situation you mentioned, so the safety in this situation cannot be fully guaranteed.

Technical Data

• Model: IR2
• Input voltage: 110V 1ph
• Emitter power (W): 1600
• Temperature: 60 - 70°C
• Net weight: 2.1kg
